Place of Origin:
China
Brand Name:
HDPARTS
Model Number:
DE12 D2366
Contact Us

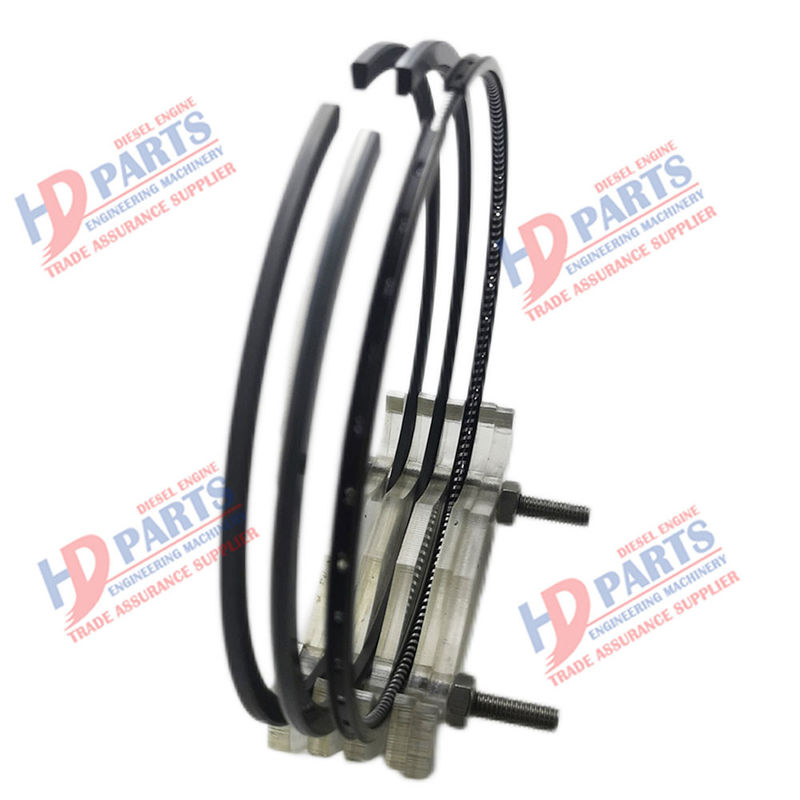

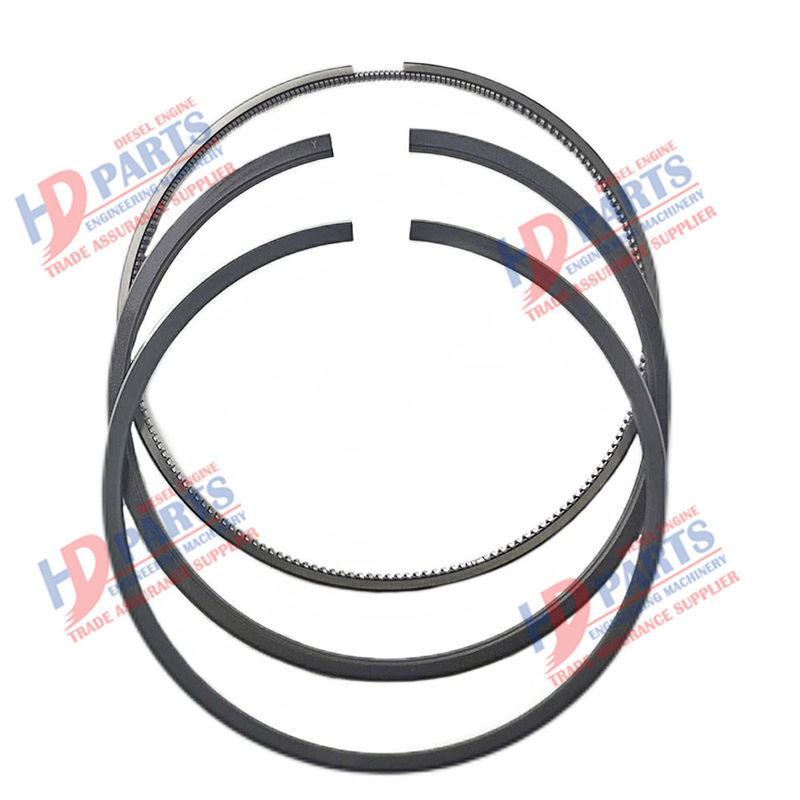

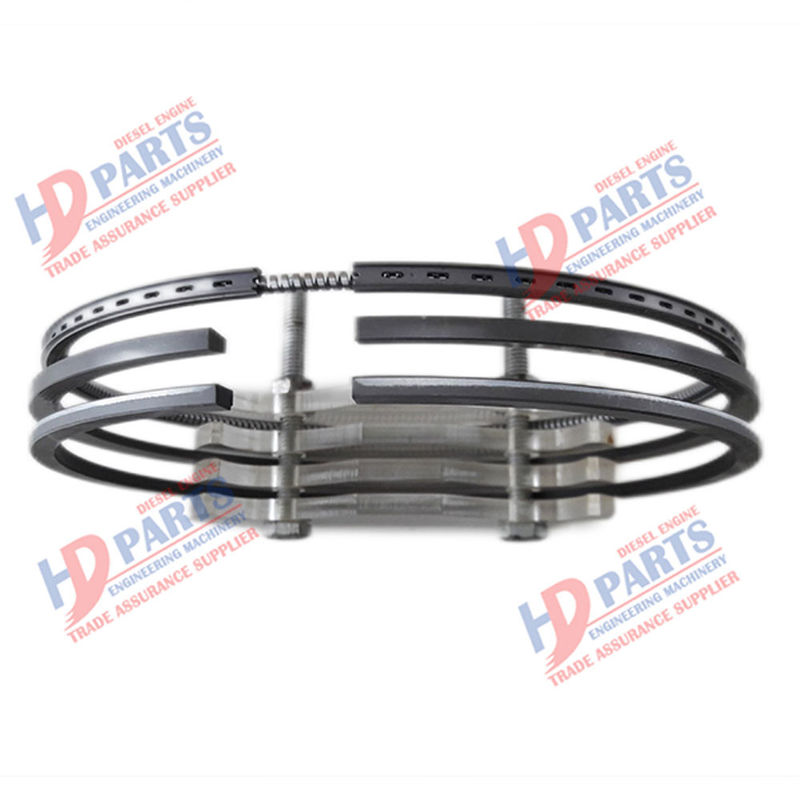

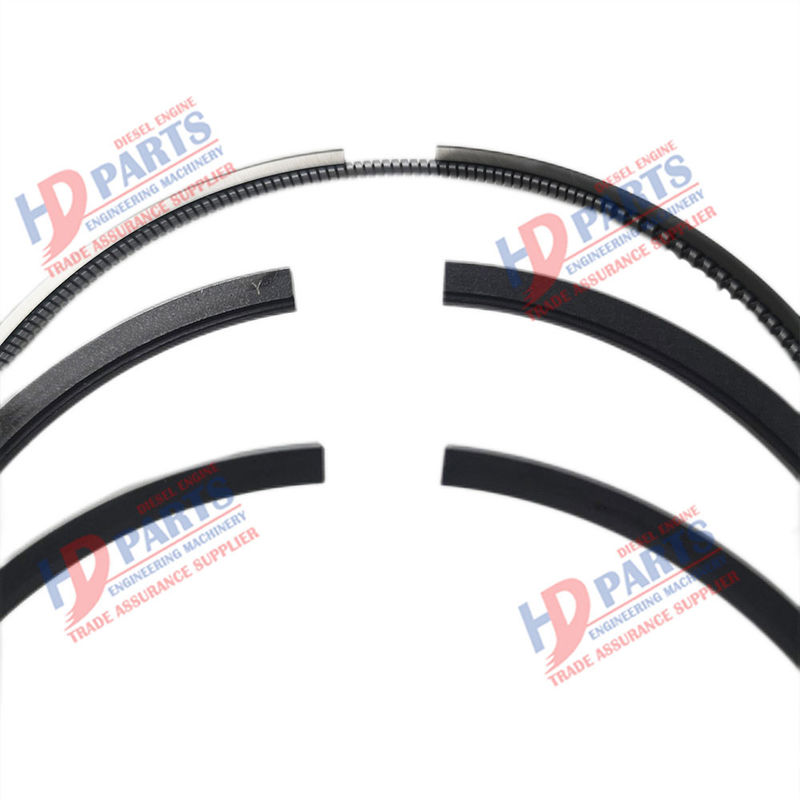

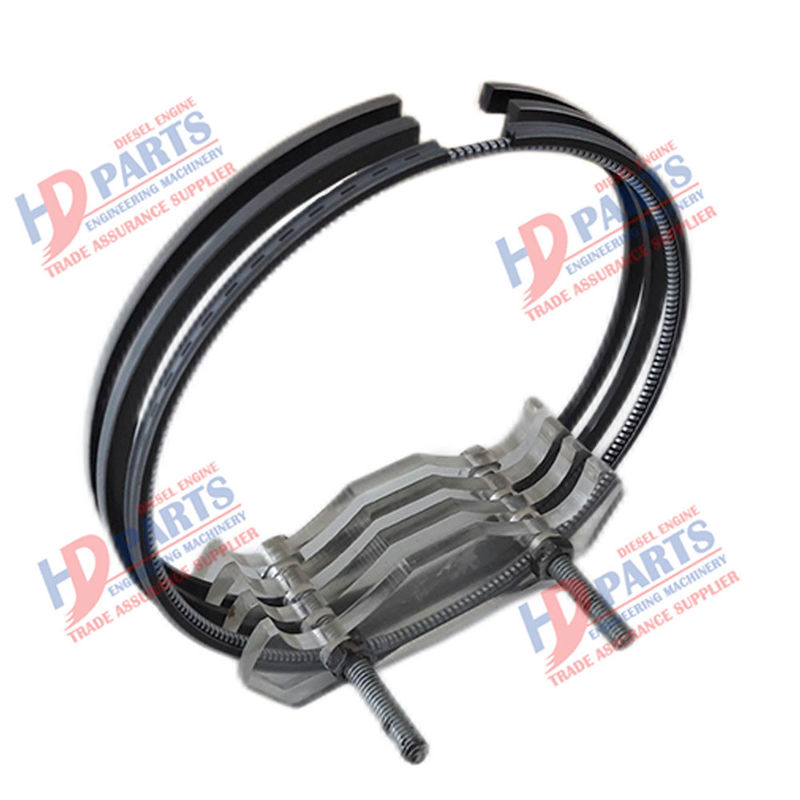

DE12 D2366 Piston Ring 65.02503-8236 Suitable For DOOSAN Diesel Engines Parts
Specification
| Applicable models | DE12 D2366 |
| Type | Piston ring |
| Original number | 65.02503-8236 |
| Warranty | 6 months |
| Engine Type | Diesel |
| Brand Name | HDPARTS |
| Condition | New |
| Size | OEM Size |
| Piston ring usage | The working surface of the piston ring shall not be nicked, scratched or peeled off. The outer cylindrical surface and the upper and lower end faces shall have a certain finish. The curvature deviation shall not be greater than 0.02-0.04 mm. The standard settlement of the ring in the groove shall not exceed 0.15-0.25 mm. The elasticity and clearance of the piston ring shall meet the requirements |
| Precautions for piston ring |
When installing the piston ring, pay attention to: 1) The piston ring shall be installed into the cylinder liner, and there shall be certain opening clearance at the interface. 2) The piston ring shall be installed on the piston, and there shall be certain side clearance in the ring groove along the height direction. 3) The chrome plated ring shall be installed in the first pass, and the opening shall not face the vortex pit on the top of the piston. 4) The openings of each piston ring shall not face the piston pin hole when they are staggered by 120 ℃. 5) The conical section piston ring shall be installed with the conical surface upward. 6) Generally, when installing the torsion ring, the chamfer or groove shall be upward; When installing the conical anti twist ring, keep the conical surface upward. 7) When installing the combined ring, install the axial lining ring first, then the flat ring and the wave ring. A flat ring shall be installed on the top and bottom of the corrugated ring, and the openings of each ring shall be staggered. |
PRODUCT CATEGORIES
We get to start preparing the goods when we receive payment from you. (The goods will be sent between 48 hours to 72 hours if we have in stock. The goods will be sent before the delivery time and the sample will send to you for checking.)
