Place of Origin:
China
Brand Name:
HDPARTS
Model Number:
C13

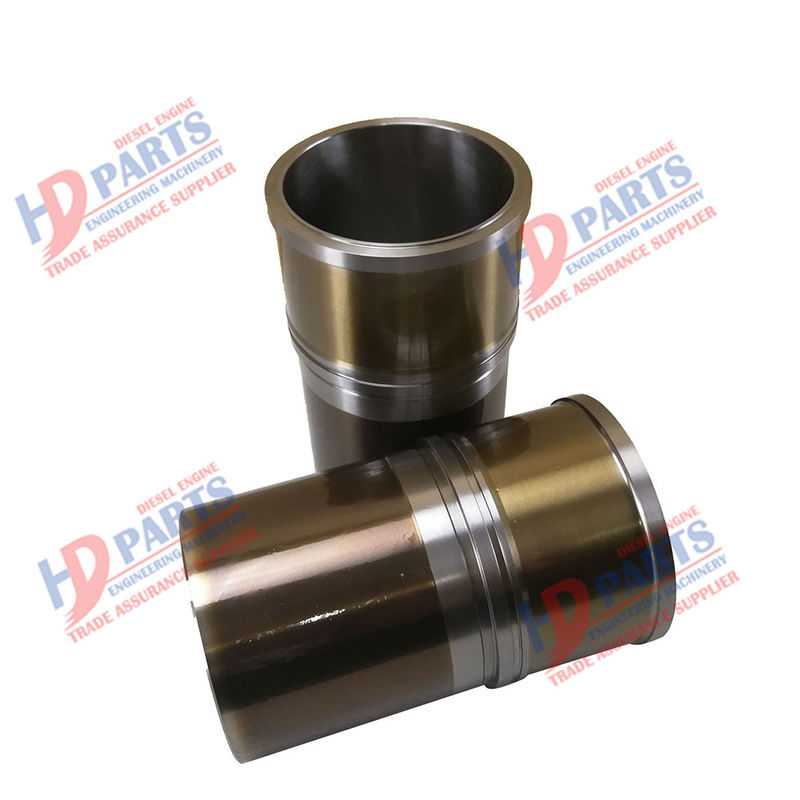

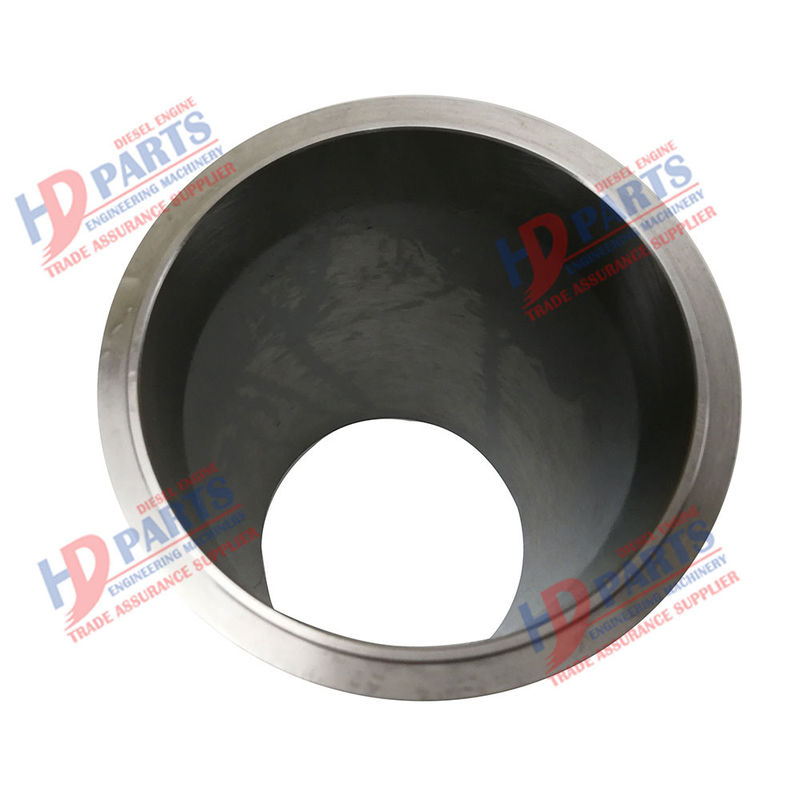

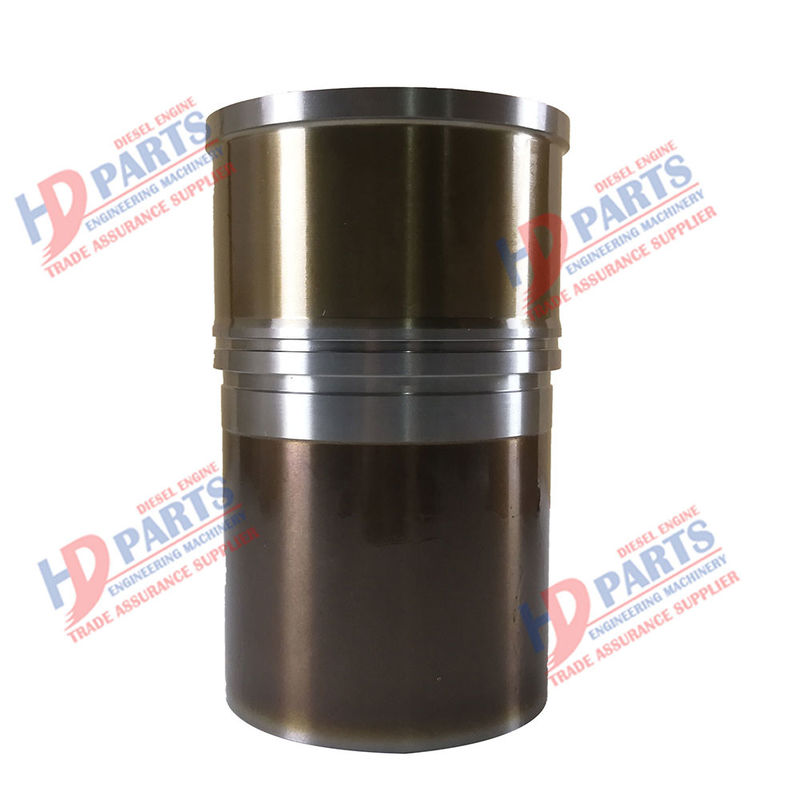

C13 Engine Cylinder liner 197-9330 Suitable For CATERPILLAR Diesel engines parts
Specification
| Applicable models | C13 |
| Type | Cylinder liner |
| Original number | 197-9330 |
| Warranty | 6 months |
| Engine Type | Diesel |
| Brand Name | HDPARTS |
| Condition | New |
| Size | OEM Size |
| Function of cylinder liner |
The functions of cylinder liner include: 1. Together with the cylinder head and piston, it forms the working space of the cylinder. 2. The cylinder liner of the cylindrical piston diesel engine bears the thrust of the piston side and becomes the lead of the reciprocating motion of the piston. 3. Transfer the heat of the piston assembly and itself to the cooling water to make the working temperature appropriate. 4. The cylinder liner of the two-stroke diesel engine is provided with an air port, which is opened and closed by the piston to realize gas distribution.
|
| Working conditions |
The inner surface of the cylinder liner is directly affected by the high-temperature and high-pressure gas, and always has high-speed sliding friction with the piston ring and piston skirt. The external surface is in contact with the cooling water, causing severe thermal stress under large temperature difference and being corroded by the cooling water. The side thrust of the piston against the cylinder liner not only aggravates the friction of its inner surface, but also makes it bend. When the side thrust changes direction, the piston also impacts the cylinder liner. In addition, it is subject to a large installation preload.
|
Company Information
PRODUCT CATEGORIES
PACKAGE:
Neutral packing / Our own trademark packing / Your brand OEM packing / Packing according to your requirements.
We get to start preparing the goods when we receive payment from you. (The goods will be sent between 48 hours to 72 hours if we have in stock. The goods will be sent before the delivery time and the sample will send to you for checking.)
