Place of Origin:
China
Brand Name:
HDPARTS
Model Number:
1004
Contact Us

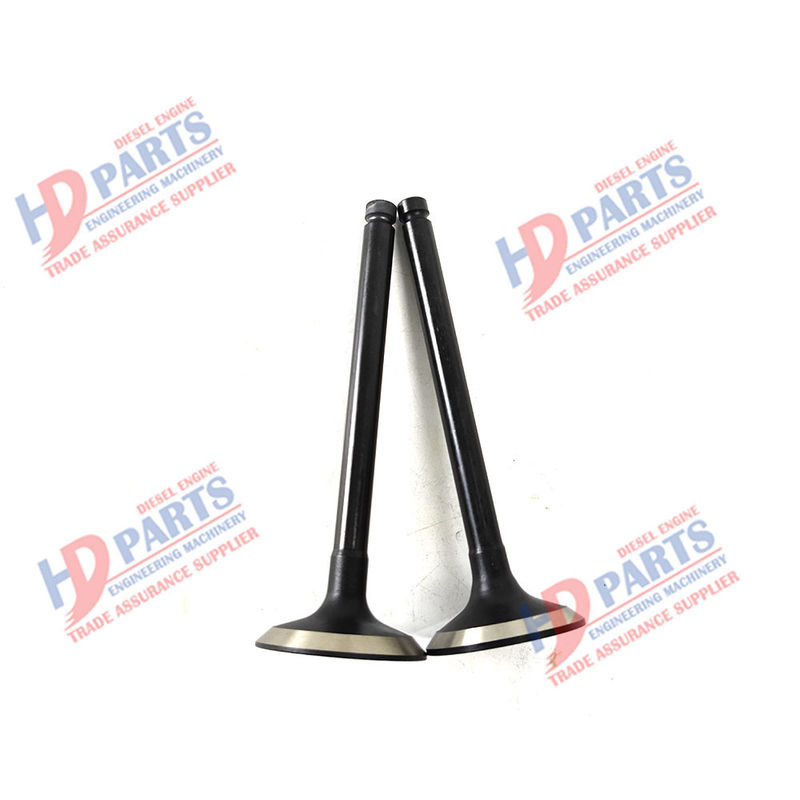

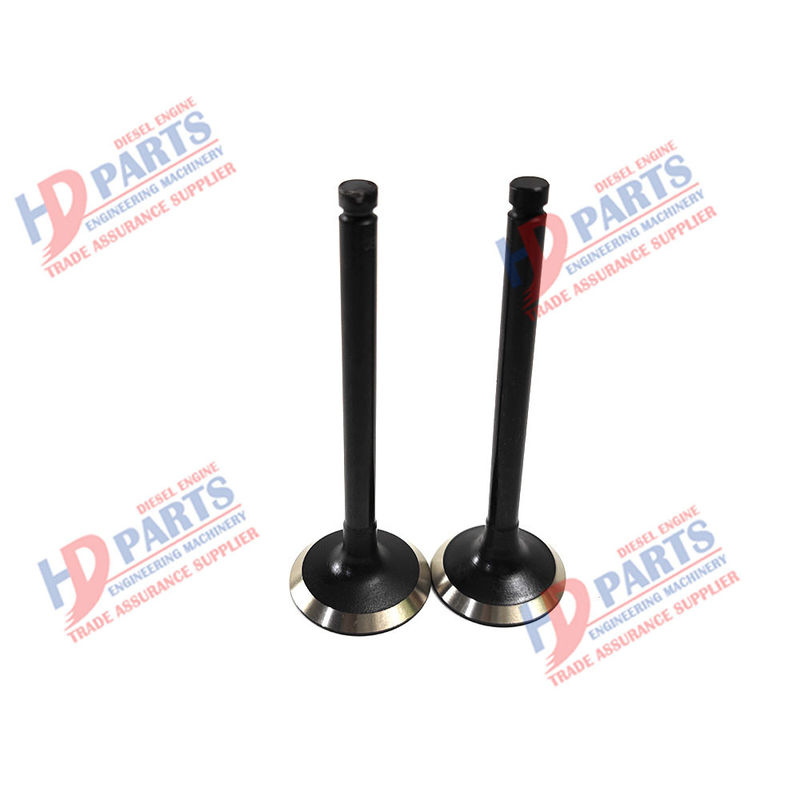

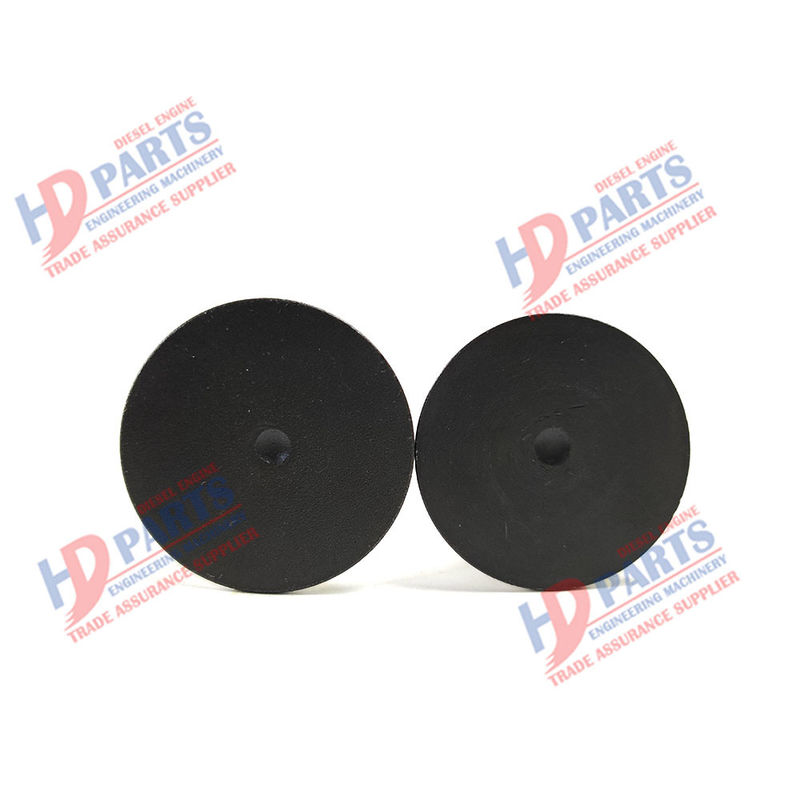

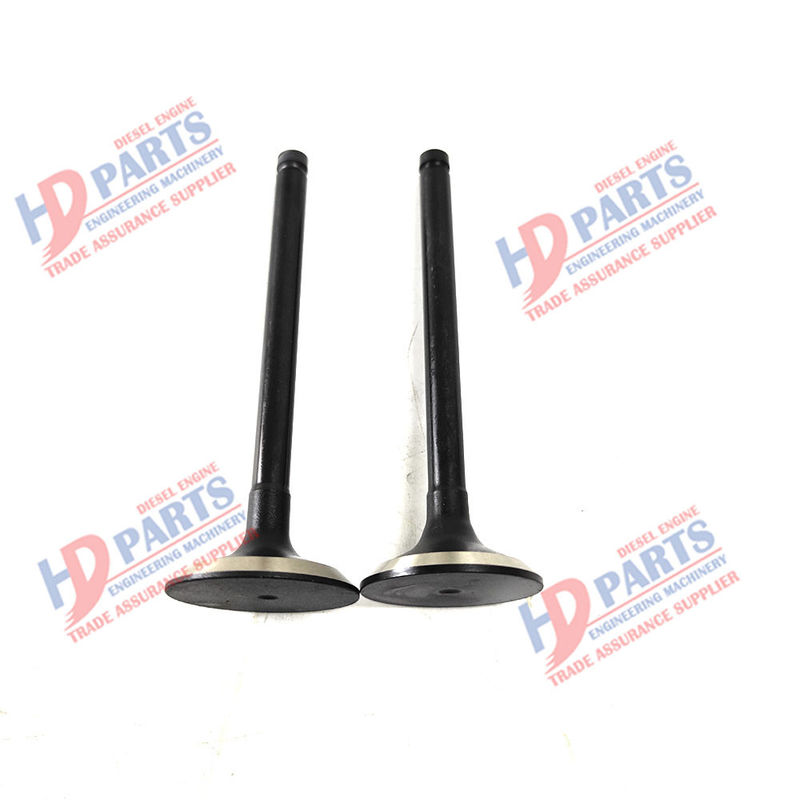

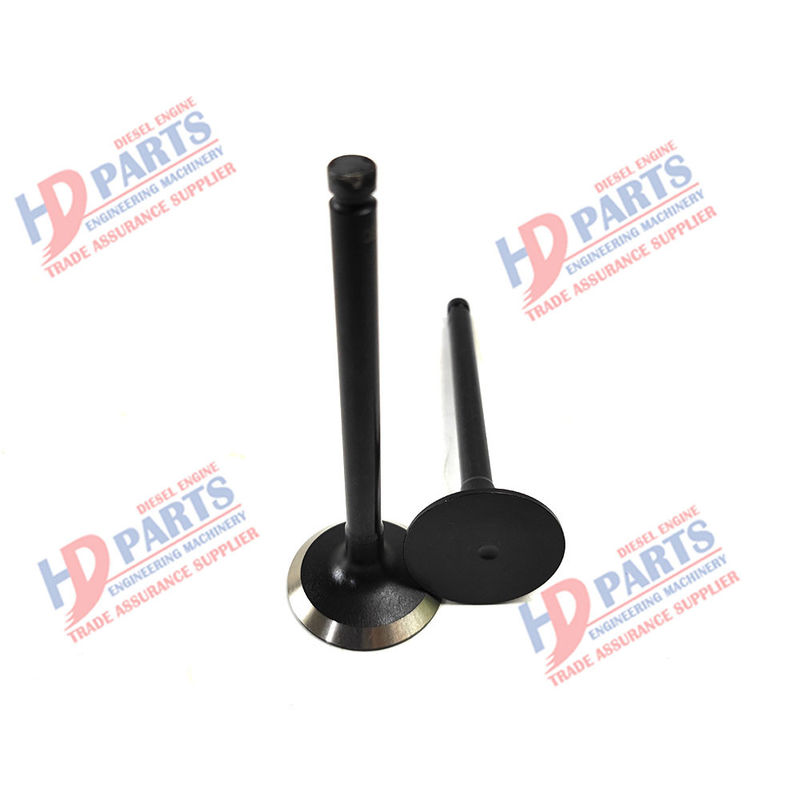

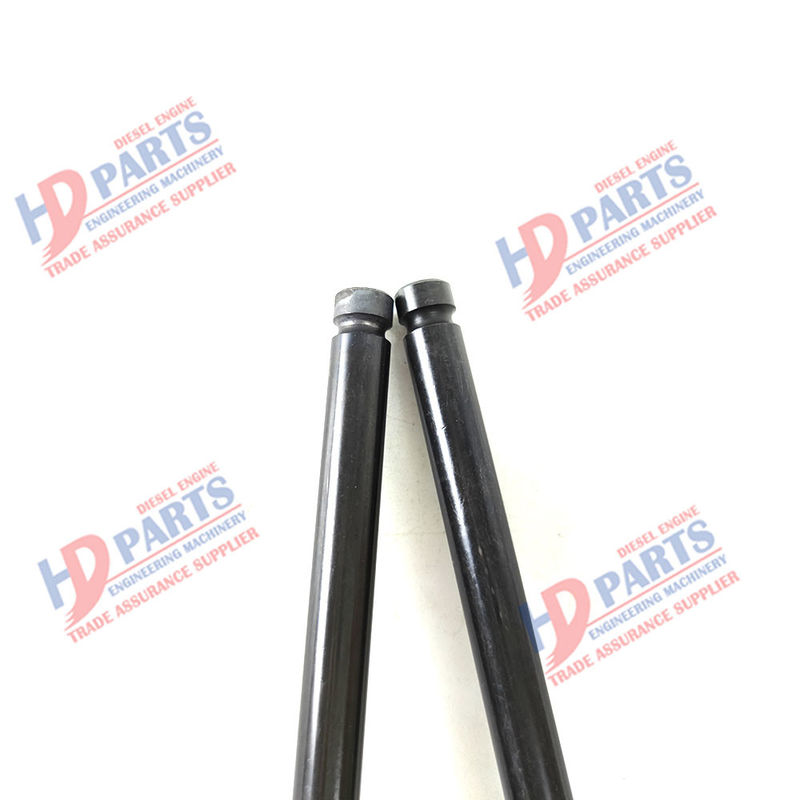

1004 Engine Valve 3142D041 3142D031 Suitable For PERKINS Diesel engines parts
Specification
| Applicable models | 1004 |
| Type | Valve |
| Original number | 3142D041 3142D031 |
| Warranty | 6 months |
| Engine Type | Diesel |
| Brand Name | HDPARTS |
| Condition | New |
| Size | OEM Size |
| function | The function of the door is to input air into the engine and exhaust the exhaust gas after combustion |
| Various components of valve |
The valve cone angle is the angle of the valve sealing surface, generally 45 °, and some are 30 ° (CA1091 car 6102 engine). The 30 ° valve is considered to have a small valve taper, a large valve passing through the end face, and a small inlet resistance when the lift is the same. However, due to the thin edge of the valve head with a small taper, small stiffness, and poor sealing and thermal conductivity, it is generally used for the inlet valve. The thickness of the valve edge is generally 1~3mm to prevent it from being damaged or burnt by high temperature due to impact with the valve seat during operation. In order to reduce the intake resistance and improve the intake efficiency of the cylinder, the intake valve of most engines is larger than the exhaust valve. The used inlet valves and exhaust valves also have different colors. The valve stem is cylindrical and moves back and forth continuously in the valve guide. Its surface must be overheated and polished. The shape of the end of the valve stem depends on the fixing form of the valve spring. The common structure is that two half of the lock plates are used to fix the spring seat. The end of the valve stem has a ring groove to install the lock plate. Some are fixed with a lock pin, and its end has a hole for installing the lock pin. [1] |
Product Description
DELIVERY TIME:
We get to start preparing the goods when we receive payment from you. (The goods will be sent between 48 hours to 72 hours if we have in stock. The goods will be sent before the delivery time and the sample will send to you for checking.)
Send your inquiry directly to us
