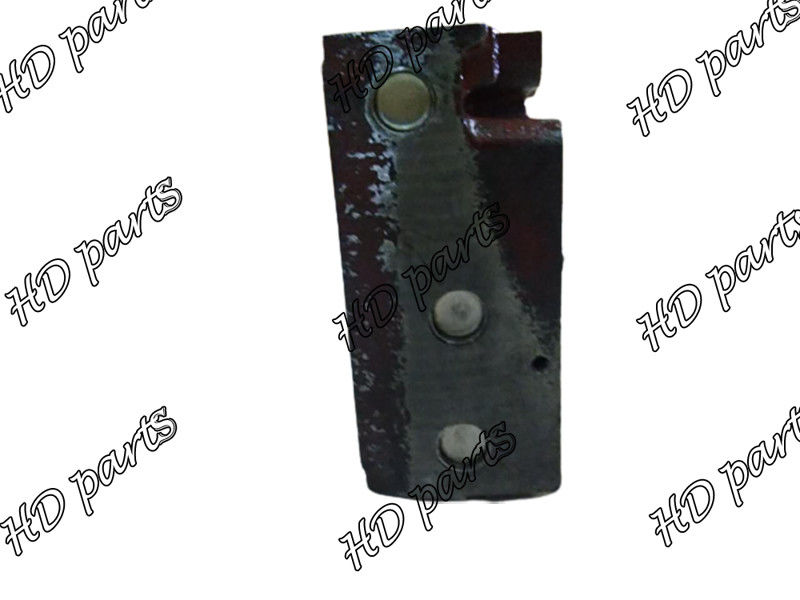

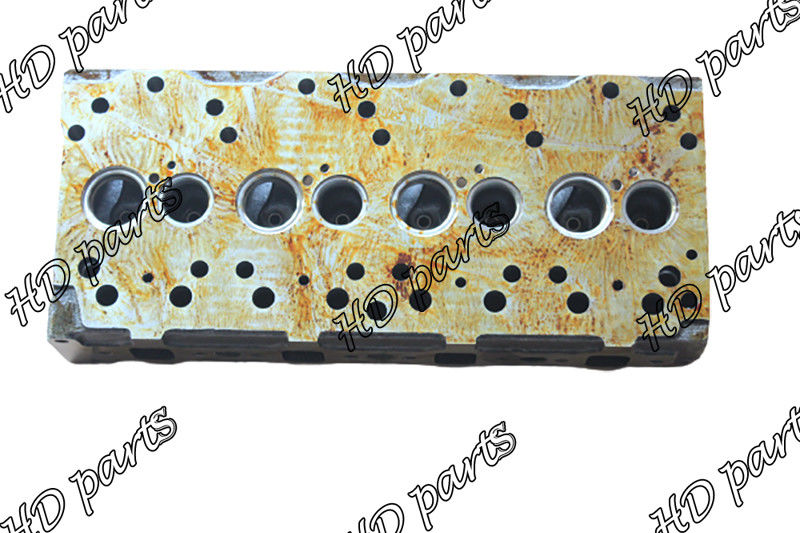

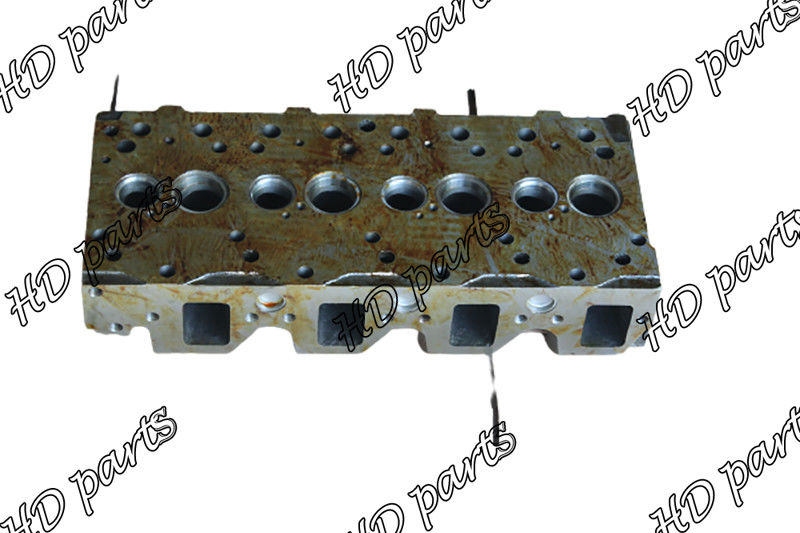

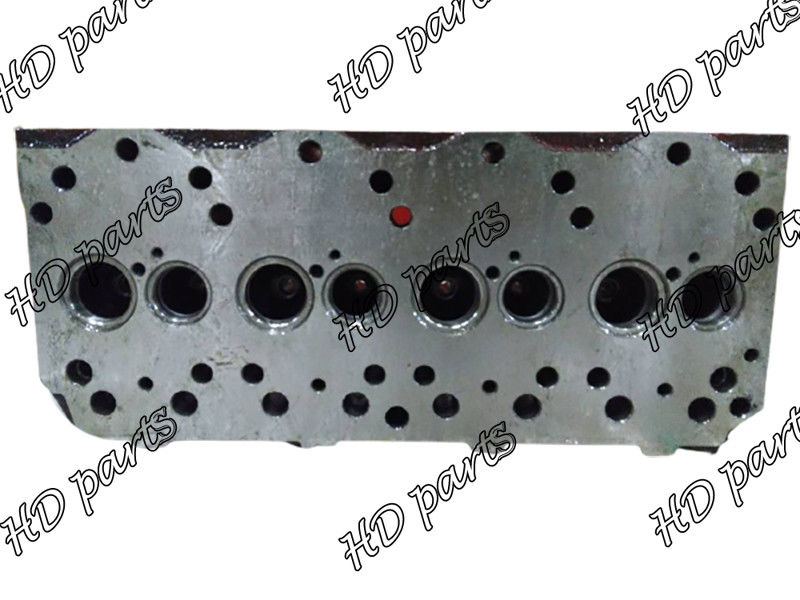

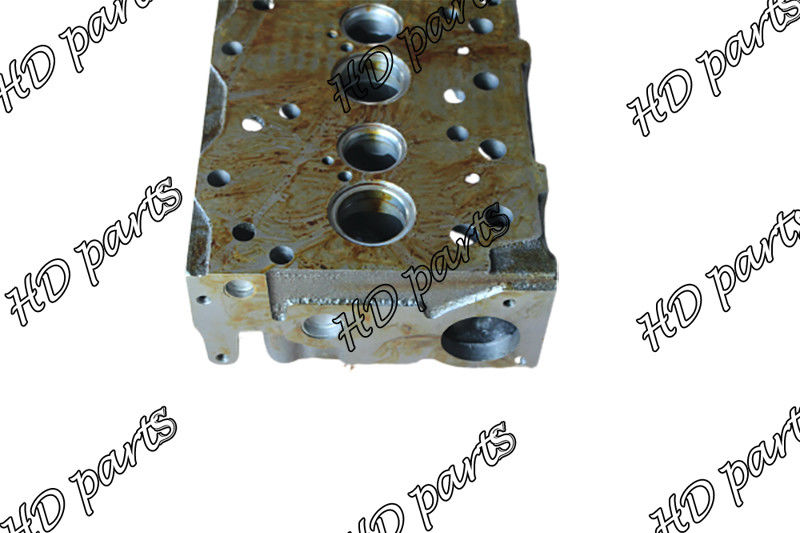

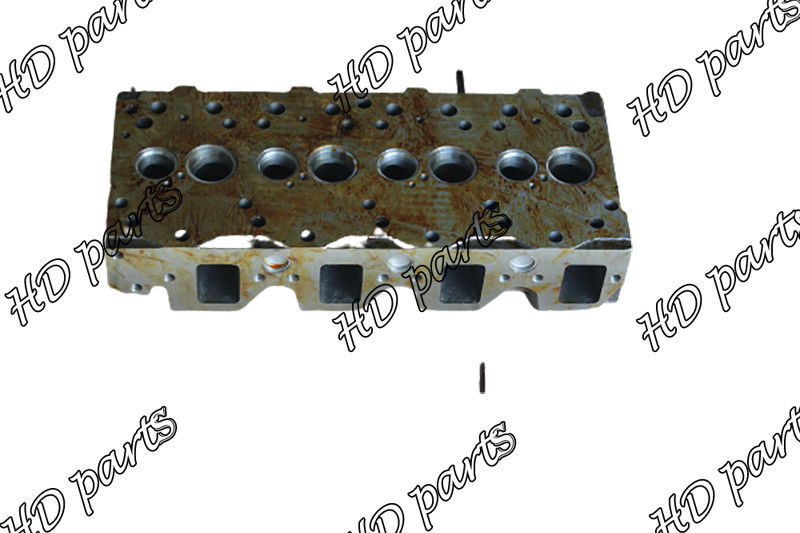

4D95S Diesel Engine Cylinder Head 6204-13-1210 High Strength

Structure function editing Announcement1. Working conditions and requirements of cylinder headThe cylinder head is subjected to the mechanical loads caused by the gas forces and bolting of the cylinder head, as well as high thermal loads due to contact with hot gas. In order to ensure a good seal of the cylinder, the cylinder head can neither be damaged nor deformed. For this, the cylinder head should have sufficient strength and rigidity. In order to make the temperature distribution of the cylinder head as uniform as possible, to avoid thermal cracks between the intake and exhaust valve seats, the cylinder head should be well cooled.2. Cylinder head materialCylinder heads are generally cast from high-quality gray cast iron or alloy cast iron, and gasoline engines for cars mostly use aluminum alloy cylinder heads.3. Cylinder head constructionCylinder heads are box-shaped parts with complex structures. It is machined with intake and exhaust valve seat holes, valve guide holes, spark plug mounting holes (gasoline engines) or injector mounting holes (diesel engines). Inside the cylinder head are also cast a water jacket, intake and exhaust ducts and a combustion chamber or part of the combustion chamber. If the camshaft is mounted on the cylinder head, the cylinder head is also machined with a cam bearing bore or cam housing and its lubricating oil channel.The cylinder head of a water-cooled engine has three structural forms: integral type, block type, and monobloc type. In a multi-cylinder engine, if all cylinders share a cylinder head, the cylinder head is said to be an integral cylinder head; If there is one cover for every two cylinders or one cover for three cylinders, the cylinder head is a block cylinder head; If there is one cover per cylinder, it is a single cylinder head. Air-cooled engines are monocoque cylinder heads.Cylinder cracking edit broadcastIn winter, the temperature is low, and the diesel engine cylinder head is prone to cracks and leakage. The main reasons are as follows:1. Add cooling water only after starting. After the diesel engine starts, the temperature in the engine immediately rises, and if cooling water is added at this time, the cylinder block and cylinder head cool sharply, and cracks will be caused by cold contraction.2. After shutdown, no cooling water is released. The water in the machine freezes into ice, the volume increases, and the cylinder block and cylinder head expand and crack.3. When the diesel engine is running, the cooling water is insufficient or the temperature of the water tank pot opener is too high, and the cooling water is suddenly added. Excessive cold shrinkage of the cylinder block and cylinder head can also cause cracking.4. The diesel engine runs for a long time, the temperature inside the machine is high, and the high-temperature water is immediately released after stopping. This can cause hot parts to crack when exposed to cold air.5. Use the pressure reducing machine to stop the machine, so that the high-temperature cylinder head suddenly encounters cold air and causes cracking.Cracking of various types of cylinder blocks and cylinder heads is prevented:1. Before starting the diesel engine, warm and hot water should be added to the water tank, and hot water should be filled 2~3 times in severe winter, and it is best to start when the water flowing out of the water valve is about 30~50 °C.2. When the diesel engine runs for a long time, it should wait for about half an hour after shutdown, and then release the cooling water when the machine temperature drops to 40~50 °C. After draining the water, it is best to use a thin wire to poke the drain valve switch to prevent sediment from blocking the drain valve.3. When the diesel engine is overheated and there is a serious water shortage, the diesel engine should be idled at low speed for 10~15 minutes, and then the cooling water should be slowly added
